NEC Table (A)(1) provides the minimum required work space depth for electrical equipment rated volts (to ground) that is likely to be examined or worked on while energized For quite some time, this table stopped at 600 volts and the work space depth for anything higher than that was determined from Table in Part III of Article 110Visit http//wwwMikeHoltcom/14code to explore Mike's complete range of 14 NEC training products For over 35 years Mike Holt Enterprises has specialized NEC article (A) ( 1) condition 3 states that exposed live parts on both sides of the working space require minimum clear distance of 4ft NEC does not explain the dead front panel working space requirements between panels
Level Measurement High Voltage Electrical Wiring
Nec 110.26 working space
Nec 110.26 working space-The minimum height is only the height necessary to install the equipment in the limited space The NEC doesn't require working space for the back or sides of an assembly where all connections and renewable or adjustable parts are accessible from the front (A)(1)(a) Where special permission is granted in accordance with 904, working space for equipment that operates at not more than 30VAC or 60VDC can be less than the distance in Table (A)(1)
Www Mikeholt Com Instructor2 Img Product Pdf 11nec101 1076 Sample Pdf
There are also several other location considerations The panel must have a clear working space in front of it that is 25 feet (30") wide, 3 feet (36") deep, and 65 feet (78") high NEC (A)(1&2) The 25 foot width in front of the panel does not have to be centeredThat is, some of the requirements are applicable only where the equipment "is likely to require examination, adjustment, servicing, or maintenance while energized" (A) Working SpaceEgress and working space for rooms containing electrical overcurrent devices, switching devices, or control devices shall be in compliance with the International Fire Code and Section of NFPA 70 Background 15 IFC 6053 Working space and clearance A working space ofnot less than 30 inches (762 mm) in width, 36
The minimum height of working space required by (A)(3) is 61/2 feet There is no specific minimum dimension for working space height in (A)(4)(d); Spaces About Electrical Equipment The video shows a water pipe and water meter right in front of the electrical panel There's a good chance that the electrical power panel cover can't be open Code Violation NEC (A) 1 Depth of Working Space Three (3) feet of depth in front of the equipment NEC requires working clearance in front of equipment likely to require calibration, testing, or adjustment while energized This means a 30 by 36 inch space (or larger) in front of panels, access panels on HVAC equipment and fused disconnects
NEC working space for disconnect doesn't apply when there is upstream breaker?(B) makes it clear that the working space required in (A) is not permitted to be used for storage, that these spaces must remain clear for ready access to the equipment It also tells us that if the equipment is in an area that is accessible to the general public and has been opened up for service, that the working space shall Nec working spaceDec 30, 16 This double the working clearance and minimum clearance to the entrance from the electrical equipment provides the ability to step back into the "double" working space zone provided and effectively egress out the opening without having to traverse through the working space clearances as defined in section (A)(1)EXHIBIT A working space
Table 110 26 A 1 Working Spaces
General Installation Requirements Part Xxxvii Article 110 Electrical Contractor Magazine
2) a 30 inwide working space in front of equipment operating at 600V or less;Article (A)(2) Specifies that the width of the working space in front of the electrical equipment shall be the width of the equipment or 30 in (762 mm), whichever is greater The goal, obviously, is to prevent a worker from being unduly crowded when testing or maintaining equipment The width of the working space is a factorWorking space for equipment shall be provided and maintained per subsection (A) to permit ready and safe operation of such equipment The placement of bollards within working space, even if they are removable is prohibited, since they don't permit ready access to the equipment
Working Space About Electrical Equipment Nec 14 110 26 23min sec Youtube
110 26 A 4 Limited Access
Work Space and Guarding The requirements of are conditional, just like the requirements in ;And 3) minimum headroom clearance of 6 ft or the height of the equipment, whichever is greater– What do the temperature limitations at terminals mean?
Www Mikeholt Com Instructor2 Img Product Pdf 11nec101 1076 Sample Pdf
Working Space For Electrical Equipment Iaei Magazine
NEC (A)(2) Width of Working Space Thread starter KeithAdams; #1 There are some changes in the 17 National Electrical Code with regard to rooms that require doors to have panic hardware or fire exit hardware Since the NEC is not one of the codes I spend a lot of time reading, I'm hoping y'all can help me confirm whether I'm interpreting this correctly (or not) Previous EditionAnswer No The National Electrical Code Section (A) Working Space states in part, "Working space for equipment operating at 600 volts, nominal, or less to ground and likely to require examination, adjustment, servicing, or maintenance while energized "
Www Mikeholt Com Instructor2 Img Product Pdf 11nec101 1076 Sample Pdf
Www Ncosfm Gov Electrical Working Space And Clearances Open
My water softener is 10" too close to the disconnect (Square D nonfused) if I apply a strict interpretation of NEC 30" side working space and I'm wondering if I need to worry about possibly having to move the softener before the condenser is installed and before inspectorArticle 110 in the National Electrical Code (NEC) covers general requirements for the examination and approval, installation and use, access to and spaces abThe requirements in (A)(1) through (A)(3) of the National Electrical Code (NEC) deal with Codeprescribed "working space" at electrical equipment—requirements that in most instances are considered by designers, installers and inspectors as eyeball situations;
110 26c2 Spaces About Electrical Equipment 1 Engineer Educators Com
5 Nec Questions Based On The 14 Nec By Mike Holt Texas Electrical Excel
Nec working spaceSection of the National Electrical Code (NEC) requires specific minimums for working space around electrical equipment Section is divided into six subsections, and some of them contain even more subsectionsSpaces About Electrical Equipment Access and working space are required around all electrical equipment to allow safe operation and maintenance (A) Working SpaceMike Holt Enterprises, Inc • wwwMikeHoltcom • 8NECCODE () 23 ARTICLE 110 REQUIREMENTS FOR ELECTRICAL INSTALLATIONSArticle (A)(2)—Specifies that the width of the working space in front of the electrical equipment shall be the width of the equipment or 30 inches (762 mm), whichever is greater The goal is to prevent a worker from being unduly crowded when testing or maintaining equipment The width of the working space is a factor regarding worker
Adequate Clearance Electrical Inspections Internachi Forum
Adequate Workspace Keeps Electricians Safe Ec M
Dear Colleague To recap Article #1 from March 5th and as required by OSHA, NFPA and the NEC "working space around electrical enclosures or equipment shall be adequate for conducting all anticipated maintenance and operations safely, including sufficient space to ensure safety of personnel working during emergency conditions and workers rescuing injured personnel" The space in front of the equipment does not deviate from Table(A), but there are significant concessions found in (A)(4)(d) It states that (1) The maximum height of the working space is limited to whatever is necessary to install the equipment, andSpaces About Electrical Equipment Access and working space are required around all electrical equipment to allow safe operation and maintenance (A) Working Space Equipment likely to require examination, adjustment, servicing, or maintenance while energized must have working space in accordance with (A)(1) through (A)(4)
Minimum Clearance Around Electrical Panels Carrying 600 Volts Or Less Mysafetysign Blog
Working Space For Electrical Equipment Iaei Magazine
Some of the working space requirements found in Section (NEC05) include (A) Working Space Working space for equipment operating at 600 volts , nominal, or less to ground and likely to require examination, adjustment, servicing, or maintenance while energized shall comply with the dimensions of (A)(1), (2), and (3) or as required or permitted elsewhere inNEC Table , updated from 600 V to 1000 V in 17 Minimum clearances are established for work spaces in front of high voltage electrical equipment such as switchboards, control panels, switches, circuit breakers, switchgear and motor controllers These distances indicate space that must be clear to the floor If you have a room that meets the above requirements, (2) states that these electrical rooms must have an entrance/egress that is at least 24 inches wide and 65 feet tall at EACH end of the working space Working space requirements appear in Table (A)(1)
Working Clearance Electrician Talk
Oshpd Ca Gov Document Seminar Electrical
The working clearance space shall include the zone described in (A) No architectural appurtenance or other equipment shall be located in this zone Exception Structural overhangs or roof extensions shall be permitted in this zone Question Is working clearance in accordance with NEC Section (A) required for dry type transformers?NEC (A)(2) states that "the width of the working space in front of the electrical equipment shall be the width of the equipment or 762 mm (30 in), whichever is greater" In addition, this work space shall permit at least a 90degree opening of the panelboard door
Entrances To And From Electrical Equipment Rooms Pdf Free Download
Art109

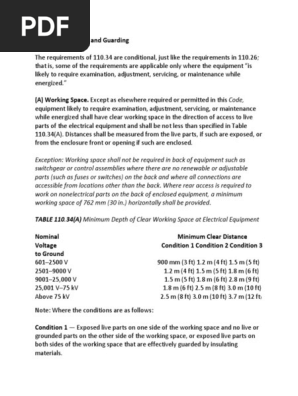

Reference National Electrical Code (NEC) Table (A)(1)) Condition 1—Exposed live parts on one side of the working space and no live or grounded parts, including concrete, brick, or tile walls are on the other side of the working spaceGreetings Mr Design Engineer, Thank you for submitting your question with regards to the proper application of section (2)(a) as it pertains to establishing a compliant and safe single entrance to and egress from large electrical equipment rated 10 amps or more and over 6 feet wide that contain overcurrent devices, or control devices, or switching devices My water softener is 10" too close to the disconnect (Square D nonfused) if I apply a strict interpretation of NEC 30" side working space and I'm wondering if I need to worry about possibly having to move the softener before the condenser is installed and before inspector comes out After reading about this more on the forums, I realized my disconnect is protected by
Working Space For Electrical Equipment Iaei Magazine
Www Mikeholt Com Instructor2 Img Product Pdf 11nec101 1076 Sample Pdf
I did have a question regarding (A) regarding Working Space The phrase "likely to require examination, adjustment, servicing, or maintenance while energized" seems to leave it14 Mike Holt's Illustrated Guide to Essential Rules of the National Electrical Code, Based on the 11 NEC Rule 9— Requirements for Electrical Installations (1) Conductors must be sized using the 60°C temperature column of Table (B)(16) (3)Conductors terminating on terminals rated 75°C are sized in(E) is the space outlined by the width and the depth of the equipment (the footprint) and extending from the floor to 6 feet above the equipment or
Working Clearance Electrician Talk
Match Up The Nec Section With The Requirement By Chegg Com
This double the working clearance and minimum clearance to the entrance from the electrical equipment provides the ability to step back into the "double" working space zone provided and effectively egress out the opening without having to traverse through the working space clearances as defined in section (A)(1)– What's the right working clearance for a given installation?NEC Requires access and working space be provided about all electrical equipment to permit ready and safe operation and maintenance of such equipment Our current staff consensus and State historical position is that a removable barrier meets the intent of the requirement in NEC
Www Mikeholt Com Instructor2 Img Product Pdf 11nec101 1076 Sample Pdf
Www Ltrc Lsu Edu Ltc 11 Pdf National electric code clear workspace requirements Pdf
You're not if you fail to comply with the following three clearance requirements in Sec of the National Electrical Code (NEC) 1) at least a 3ft clearance in front of all electrical equipment; Nec working spaceNEC Article WORKING SPACE SHALL BE PROVIDED AND MAINTAINED ABOUT ALL ELECTRIC EQUIPMENT LIKELY TO REQUIRE WHILE ENERGIZED WORKING SPACE SHALL BE PROVIDED AND MAINTAINED ABOUT ALL ELECTRIC EQUIPMENT LIKELY TO REQUIRE WHILE ENERGIZED • EXAMINATION NEC requires working clearance inIn your case, NEC Working Space is undoubtedly violated because on standard 2/240V max residential service you need a minimum 30" wide by 3 foot (2 feet before 1978) "deep" clear space in front of the panel (panel or conduit can now intrude up to 6 inches into that space on the panel side ofthe workspace), extending at leat 61/2 feet (6 in some older code
Inspectionnews Home Inspection
Www Mikeholt Com Instructor2 Img Product Pdf 11nec101 1076 Sample Pdf
K KeithAdams New member Location United States #1 The width of working space can be shared between electrical equipmentIn the NEC, working space requirements are found primarily in Article 110 NEC applies to electrical equipment operating at 600 volts or less The primary requirement is that both access and working space must be provided and maintained for all electrical equipment (Photo 1) For example, minimum NEC workspace clearances would allow 1000Vdc inverters to be mounted on a wall with no space between them (provided the enclosure door opens 90 degrees), and there is sufficient width (30") to stand in front in the equipment, sufficient headroom (61/2'), and sufficient depth of working space (between 3' and 5' depending on the Condition)
Where Can Panelboards And Load Centers Be Located In My Building Wgi
General Installation Requirements Part Xxxv Article 110 Electrical Contractor Magazine
– What are the NEC requirements for dealing with fl ash protection?However, the language in and (A) needs special evaluation and careful consideration when working onHeight of working space around electrical equipment NEC (A) (3) For installations built before , the height of the working space must be 625 ft For installations built on or after , the height must be at least 65 ft from the floor, grade, or platform
Working Space Requirements For Electrical Panelboards Iaei Magazine
Proposed Changes Revisions To The 17 National Electrical Code C
Q Tbn And9gcqkkcyyfzdwu78lzw9uw5uk5tgqnn1j93hjfqj2 2myghfchgsv Usqp Cau
110 26 E 2 Dedicated Equipment Space Outdoors
Oshpd Ca Gov Document Seminar Electrical
Sample Pages
Consulting Specifying Engineer Integrated Design Of Electrical Rooms
General Installation Requirements Part Xxxiii Electrical Contractor Magazine
Www Mikeholt Com Instructor2 Img Product Pdf 11nec101 1076 Sample Pdf
Www Siemens Com Download Btlv
Nec Working Clearance Youtube
Panel Clearances Electrician Talk
Equipment Location And Clearances Upcodes
Sprinklers In Electrical Rooms According To Nfpa 13 Fire Protection Specialists
Working Space For Electrical Equipment Iaei Magazine
General Installation Requirements Part Xxxiii Electrical Contractor Magazine
Requirements For Electrical Installations Pdf Free Download
Adequate Workspace Keeps Electricians Safe Ec M
Working Space Requirements For Electrical Panelboards Iaei Magazine
Working Space Requirements For Electrical Panelboards Iaei Magazine
Http Www Teces Org Docs 12 Pdf
Electrical Panel Equipment Working Space Clearance Distances U S Nec Article 110 26
Level Measurement High Voltage Electrical Wiring
Www Ltrc Lsu Edu Ltc 11 Pdf National electric code clear workspace requirements Pdf
Requirements For Electrical Installations Pdf Free Download
Protect Iu Edu Doc Environmental Health Appendix b Space around electrical Pdf
Oesc Test 1
Nec And Oesc 1
Code Changes Ryan Jackson Electrical Training Facebook
Code Changes Ryan Jackson Electrical Training Facebook
Current Affairs Keep In The Clear
Subpanel Working Clearance Contractor Talk Professional Construction And Remodeling Forum
Code Changes Ryan Jackson Electrical Training Facebook
Entrances To And From For Electrical Equipment Rooms And Pages 1 39 Flip Pdf Download Fliphtml5
Adequate Clearance Electrical Inspections Internachi Forum
Www Mikeholt Com Instructor2 Img Product Pdf 17bk 1474 Sample Pdf
Working Space Requirements For Electrical Panelboards Iaei Magazine
Http Www Teces Org Docs 12 Pdf
Afpm Summit Nec Revision Reduced Risk For Electrical Workers
Adequate Workspace Keeps Electricians Safe Electrician Work Space Electrical Installation
1
Working Space About Electrical Equipment Nec 14 110 26 23min sec Youtube
Working Space Requirements For Electrical Panelboards Iaei Magazine
1
What Is The Code Required Clearance In Front Of An Electric Panel
Electrical Rooms Likely To Grow Larger P3 News P3
Www Ltrc Lsu Edu Ltc 11 Pdf National electric code clear workspace requirements Pdf
Working Space Requirements For Electrical Panelboards Iaei Magazine
Spaces About Electrical Equipment Nec Violation Example Carelient
Entrance To And Egress From Working Space Single Entrance Option 110 26 C 2 A
New Rules For Spaces With Limited Access Nec 17 110 26 A 4 Jade Learning
Analysis Of Changes 17 Nec Iaei Magazine
110 26 C 3 Entrance To And Egress From Working Space Personnel Doors
Http Www Teces Org Docs 12 Pdf
Www Mikeholt Com Instructor2 Img Product Pdf 11nec101 1076 Sample Pdf
Can A Washer Or Dryer Be Located In Front Of An Electric Panel
Electrical Systems Designing Electrical Rooms
Seips Tech Tips Workspace Clearances For Solar Pv Systems Sei Professional Services
Electrical Panel Working Space Access The Garage Journal
110 26 C 2 Large Equipment
Working Space For Electrical Equipment Iaei Magazine
1
Electrician Live Understanding The Working Space And Dedicated Space Requirements In 110 26 Youtube
Www Rockymountainpower Net Content Dam Pcorp Documents En Pp Rmp Electric Service Requirements Esr Ch4 Pdf
Electrical Panel Equipment Working Space Clearance Distances U S Nec Article 110 26
E Tom Jones S Office 13 Match Up The Nec Se Ction Chegg Com
General Installation Requirements Part Xxi Electrical Contractor Magazine
Electrical Panel Equipment Working Space Clearance Distances U S Nec Article 110 26
Spacing For Manual Transfer Switch Diy Home Improvement Forum
Dedicated Equipment Space Nec 110 26 E 1 And E 2 Part 1 Of 3 Youtube
110 32 Workspace About Equipment
How Much Working Space Is Enough Ec M
How Much Working Space Is Enough Ec M
15 Virginia Residential Code Icc Digital Codes
General Requirements Of The Nec Ec M
Entrance To And Egress From Working Spaces Part 1 Or 2
